Howdy!
I came across this project too late to get set up to use the official festival software. However, I have a setup I used for some experiments in frequency measurement, and was able to run it to cover much of the 07 June to 12 June period. The data below are the results of my measurements.
Equipment: Agilent 89441A Vector Signal Analyzer, 4-element SteppIR beam tuned to 10MHz, Z3801 GPS-stabilized oscillator

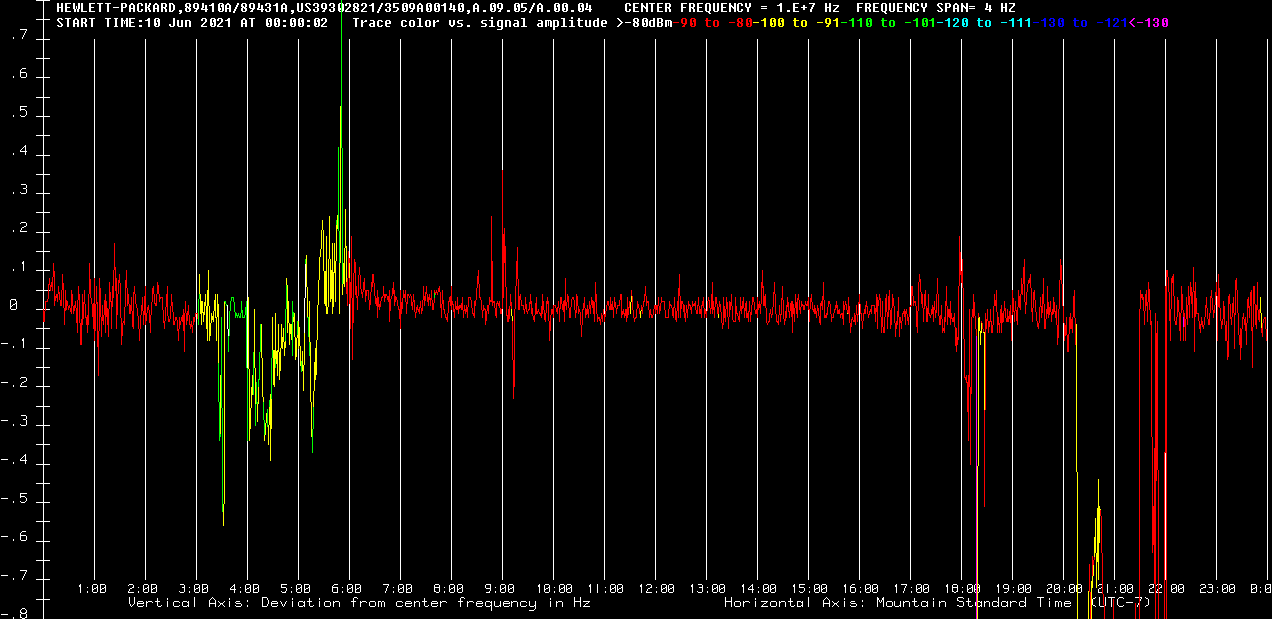

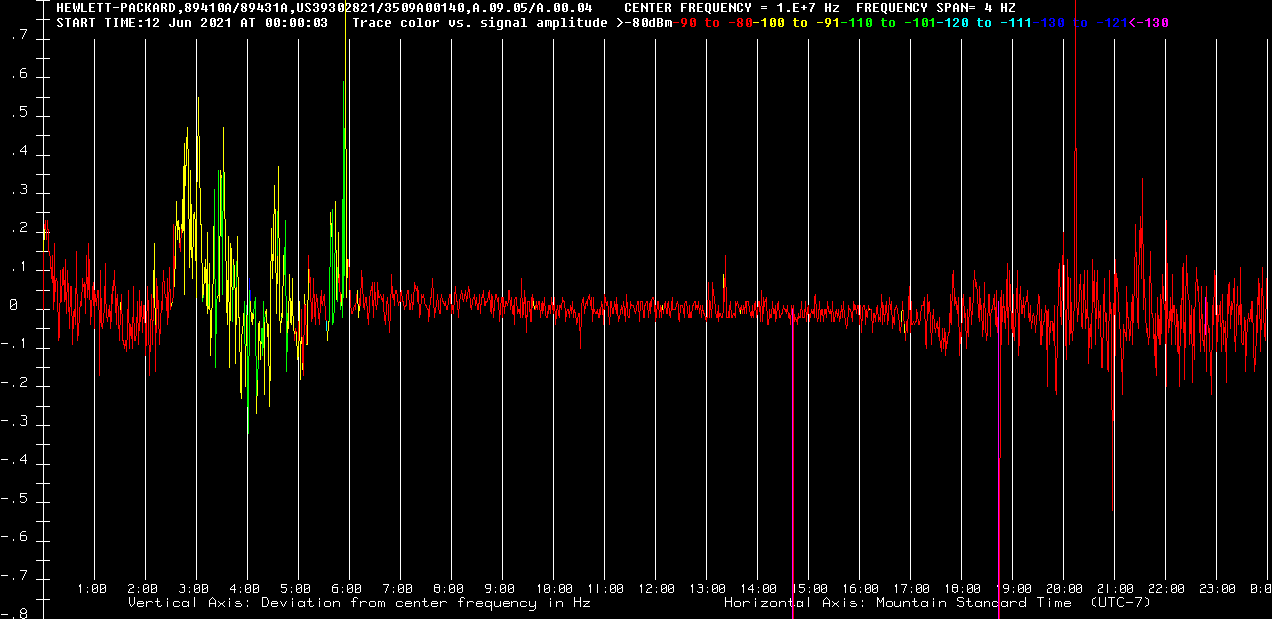

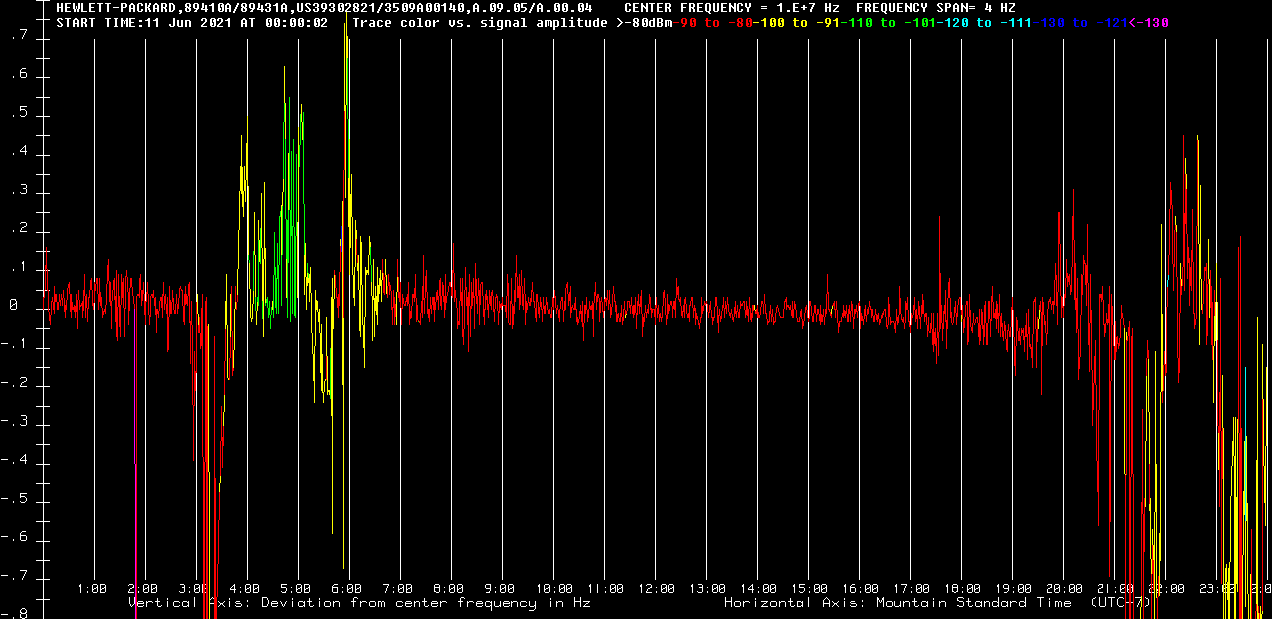

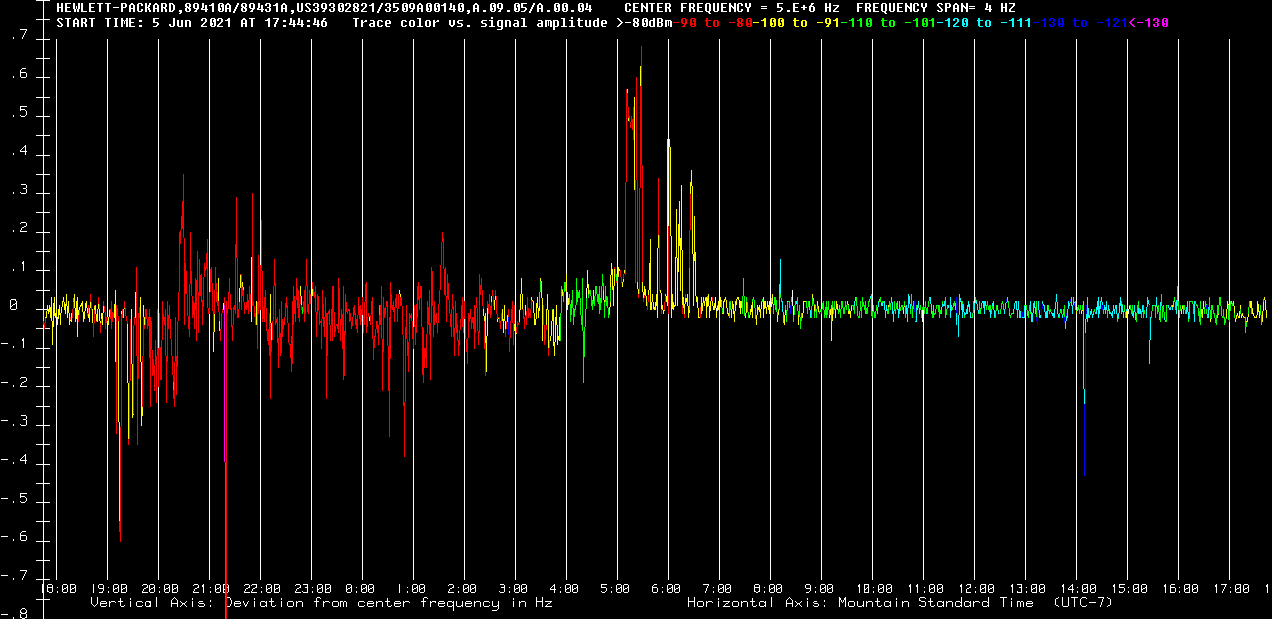

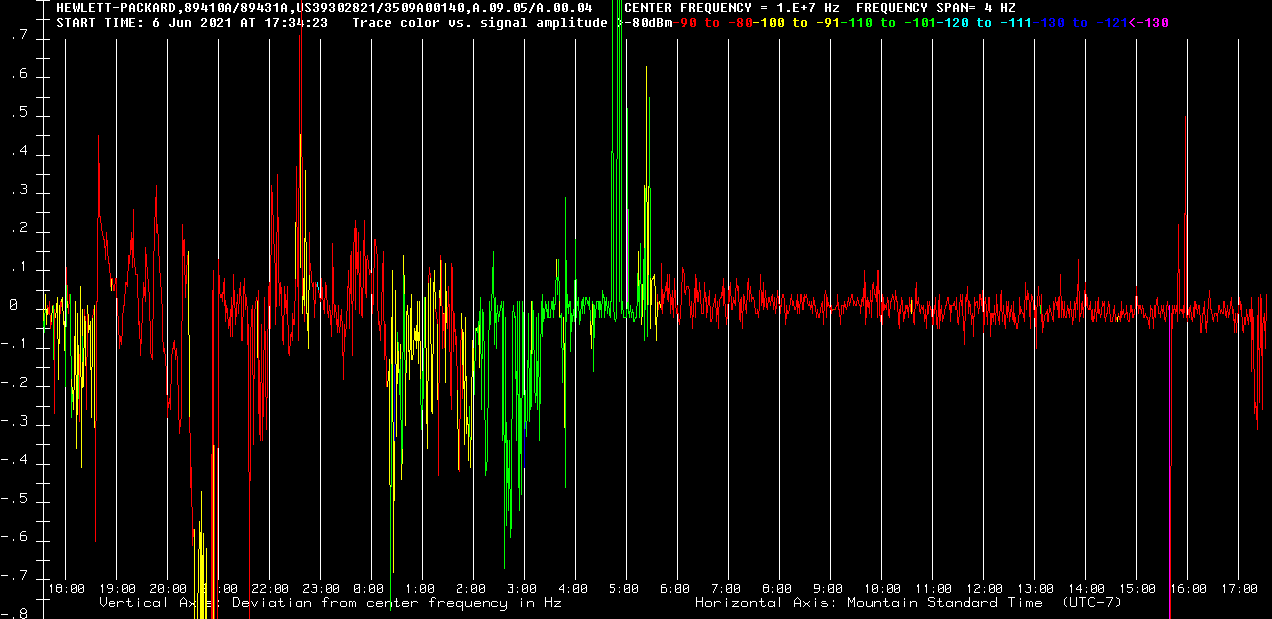

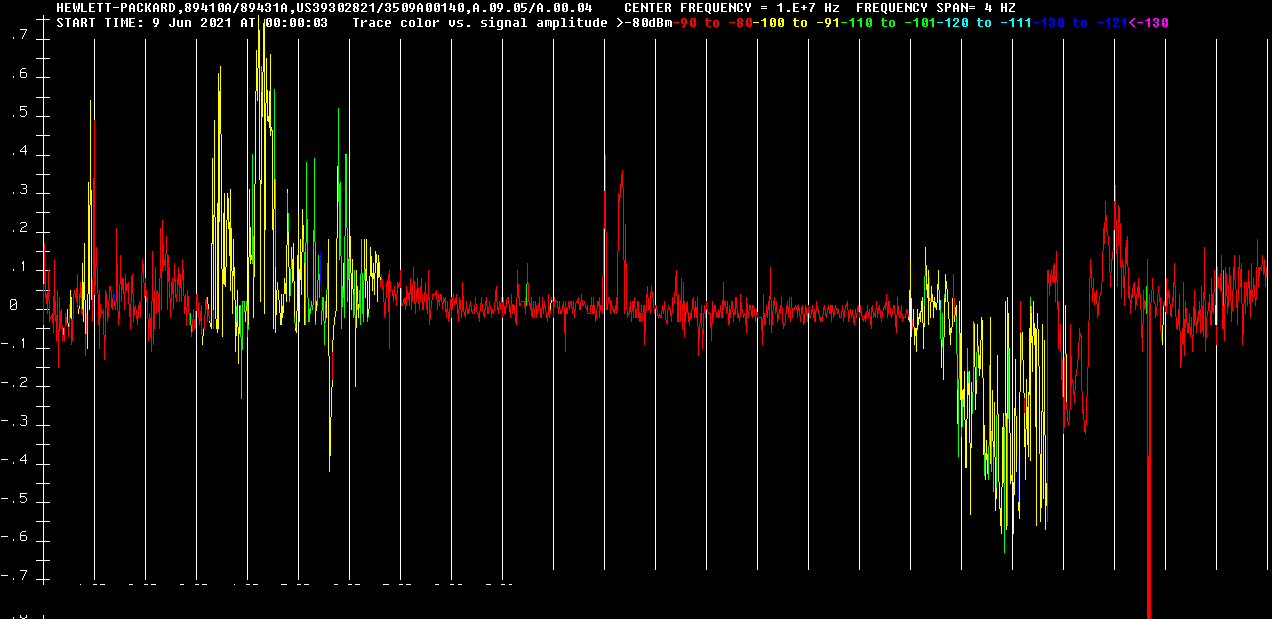

Each panel represents 24 hours of WWV reception. Note that start times (in MST) differ on some panels, and not all are at 10MHz. Arizona is on Mountain Standard Time, UTC-7. Transmitter location: WWV, Boulder Colorado. Receiver location: Sedona Arizona. Path length ~500 miles, ~800km.
For the numerical data behind each graph (time, amplitude, frequency deviation), click on the graph to see the data, or right-click to download.
If you find this data useful, please let me know!
Richard
WA2IKL
|
|
|
|
|
|
